Using a Log Scale on the axis

Sometimes, when a plot has drastic changes in one of its variables, it is useful to use a log scale on that axis. For instance, the graph of cosh(x) for x=[-10,10] looked like:

If we wanted to use a logscale on the y axis, we would use the set logscale command. The usage of this command is

set logscale axis

To see what logscale is being used, type:

show logscale

To turn logscaling off for a axis, use

set nologscale axis

We if typed the following lines in,

set logscale y
plot cosh(x)

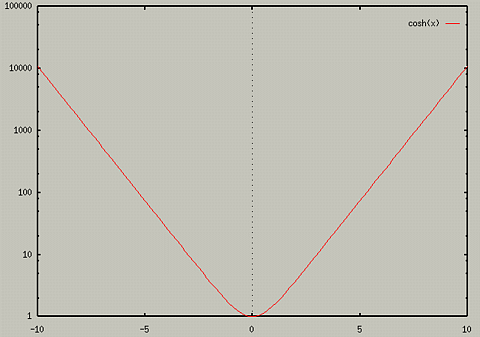

We would get the following graph.

This can also be useful for data plots.
